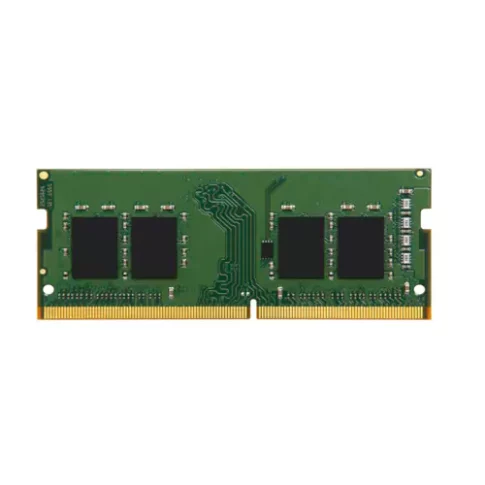

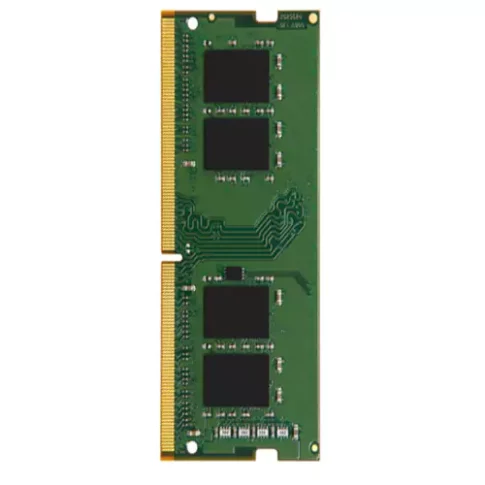

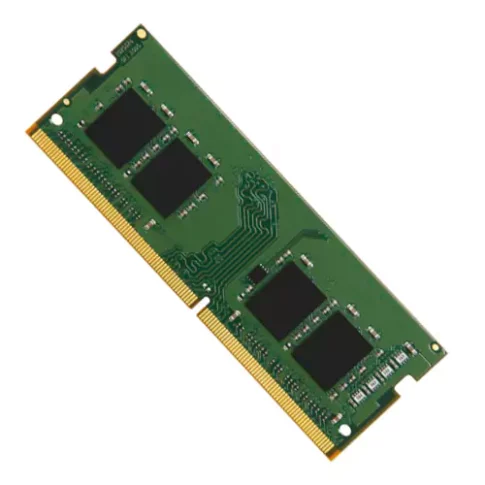

Kingston 16GB 3200 MHZ DDR4 Non-EC RAM

SKU: KVR32S22S8-16 Brand:
-82%
Sale!

Original price was: ₹20,000.Current price is: ₹3,549. incl. GST

541 GST Input (18%) Claimable with B2B Billing.
Enter GST number at checkout.

10 in stock

Tag us Instagram for this order and get Rs100 Cash Back directly in Bank Account. Create an unboxing video on youtube and upto Rs1000 Cash Back. Its easy and takes a maximum of 15 minutes. T&C apply.
Get EMI upto 24 months on your credit cards. Bajaj Finserv is based upon approval and will incur an additional charge.

This document describes ValueRAM’s KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.



In the Box:
  • Kingston 16GB 3200MHZ DDR4 NON-ECC RAM (KVR32S22S8-16)

DISCRIPTION
This document describes ValueRAM’s KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

FEATURES

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

Packaging Weight 0.1 kg
Brand

Kingston

Series

Laptop Ram

Model

KVR32S22S8-16

Capacity

16GB (1 x 16GB)

Speed

DDR4 3200MHz

Cas Latency

22-22-22

Buffered/Registered

Unbuffered

Voltage

2.5V
