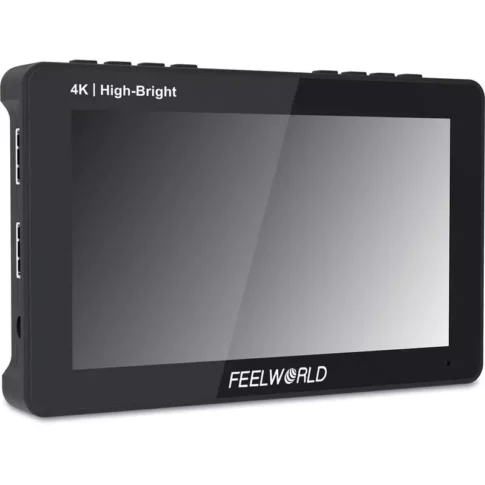

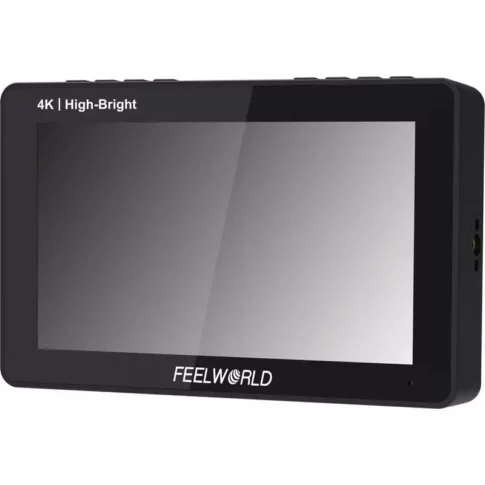

FeelWorld F5-PRO X Overview

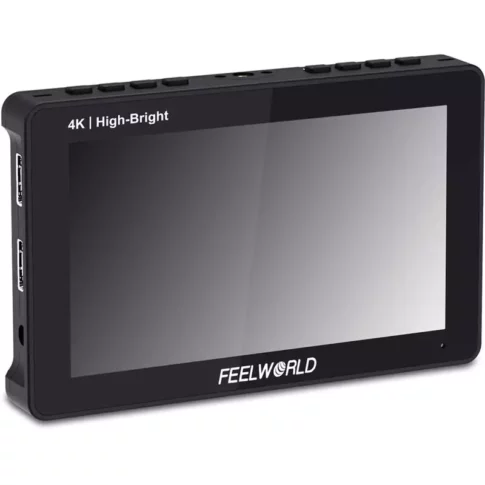

Add a high-resolution monitor to your 4K camera with the F5 Pro X 5.5″ High-Brightness HDMI Touchscreen Monitor from FeelWorld. It features an improved 1600 cd/m² brightness, 1080p60 resolution, and 1000:1 contrast ratio. It includes 3D LUT support with four built-in LUT profiles, and up to 32 custom 3D LUTs can be loaded by the operator via an SD card.

Powerful Performance Tools

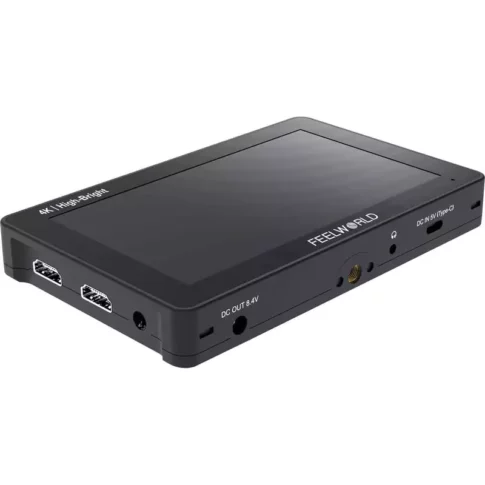

The F5 Pro X features an upgraded 1600 cd/m² brightness touchscreen, which allows you to zoom in or out with a pinch gesture to view closer detail in your images. The monitor has an HDMI input and loop output, and it supports up to DCI 4K video signals, as well as a headphone output for audio monitoring. Via the internal menu, touchscreen functionality can be turned off to prevent accidental swipes and other touchscreen commands, and you can then use the buttons on top of the monitor. For accurate exposure, focus, and other characteristics, the F5 Pro X is loaded with monitoring features such as vectorscope, histogram, anamorphic mode, and audio level meters. Its 3D LUT support allows you to utilize its four built-in Log LUTs when you’re viewing Rec. 709 video, or you can upload up to 32 user LUTs using the USB input to utilize a variety of looks and camera formats.

Versatile Compatibility

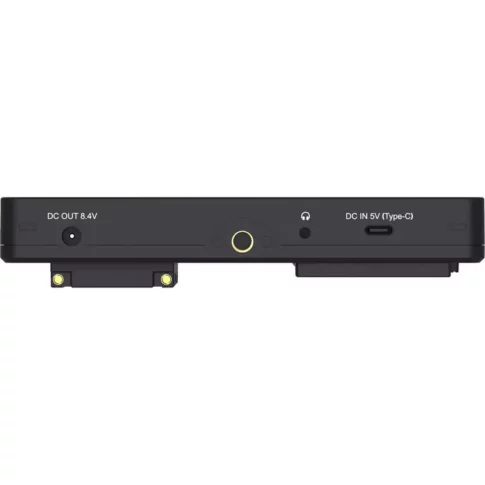

Multiple power options include a DC barrel input port for an optional power adapter, a 5 VDC USB-C port for connecting a USB power bank, and an L-series battery plate on the rear. There’s also an 8.4 VDC barrel output port that allows you to power external devices such as cameras and accessories using a separately available cable. The monitor provides multiple 1/4″-20 mounting threads, so you can attach the monitor as it best suits your needs. There’s one on the bottom, top, right, and middle rear. A 1/4″-20 to shoe mount tilt arm is included for attaching the monitor directly onto your camera and adjusting the tilt angle as needed. The tilt arm also offers an additional shoe mount on the side for mounting a mic or other accessory like the included LED light.The F5 Pro X also comes with an installation bracket secured on the back that allows you to attach transmitters, converters, and other devices. Also included is a sun hood for better viewing in bright outdoor conditions.

Packaging Weight	0.4 kg
Packaging Dimensions	15.3 × 10 × 6.9 cm
Display Size	5.5" / 14.0 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	No
Video I/O	1x HDMI (Unspecified Signal) Input 1x HDMI (Unspecified Signal) Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT Upload Only]
Video Format	HDMI (8-Bit) DCI 4K: 24 UHD 4K: 30/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i
Battery Type	1x L-Series
Power Consumption	9 W (Maximum)
Mounting	1x 1/4"-20 Female (Top) 1x 1/4"-20 Female (Bottom) 1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right)
Panel Type	IPS-Type LCD
Aspect Ratio	16:9
Viewing Angle	Horizontal: 160° Vertical: 160°
Maximum Brightness	1600 nits / cd/m2
Contrast Ratio	1000:1
Color Support	16.7 Million Colors (8-Bit)
Pixels Per Inch (ppi)	400 ppi
Finish	Glossy
LUT Support	Yes
Image Controls	Focus Assist, Histogram, R/G/B/Chroma Only, Waveform
Embedded Audio	HDMI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel 5.5 mm (12 VDC) Input 1x USB-C (5 VDC) Input 1x Barrel 5.5 mm (8.4 VDC) Output
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Input Power	12 VDC
Environmental Resistance	No
